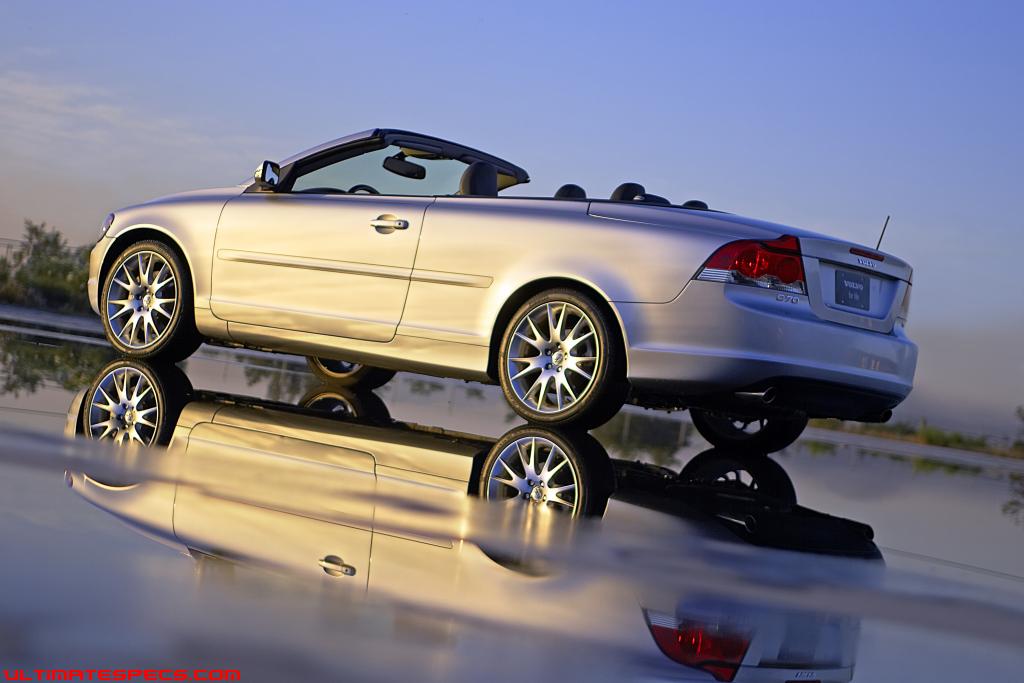

Volvo C70 II D5 Aut. Specs

(2007 - 2009) - Technical Specifications for Years 2007, 2008, 2009

Diesel

146.5 cu-in
2401 cm³

Inline 5

178 HP
180 PS / 132 kW

258 lb-ft
350 Nm

137 Mph
220 km/h

Volvo C70 II D5 Aut. Body, Model and Production details

Generation :	2nd Generation

Body :	Cabrio

Num. of Doors :	2 doors


Volvo C70 II D5 Aut. Engine Technical Data

Engine type - Number of cylinders :	Inline 5

Engine Code :	D5244T8

Fuel type :	Diesel

Fuel System :	Common Rail

Engine Alignment :	Transverse

Engine Position :	Front

Engine displacement :	146.5 cu-in / 2401 cm³

Bore x Stroke :	3.19 x 3.67 inches 81.0 x 93.2 mm

Number of valves :	20 Valves

Aspiration :	Turbo + Intercooler

Compression Ratio :	17.3

Horsepower :	178 HP / 180 PS / 132 kW @ 4000 rpm

Maximum torque :	258 lb-ft / 350 Nm @ 1750 - 3250 rpm

Drive wheels - Traction - Drivetrain :	FWD

Transmission Gearbox - Number of speeds :	5 speed Automatic


Volvo C70 II D5 Aut. Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - City NEDC :	23 MPG 10.3 L/100 km 27 MPG UK

Fuel Consumption - Economy - Open road NEDC :	41 MPG 5.8 L/100 km 49 MPG UK

Fuel Consumption - Economy - Combined NEDC :	32 MPG 7.4 L/100 km 38 MPG UK

Range :	503 miles / 810 km

Fuel Tank Capacity :	15.9 gallons 60 L 13.2 UK gallons

CO2 emissions :	196 g/km (Volvo)

Emission standard :	Euro 4


Volvo C70 II D5 Aut. Size, Dimensions, Aerodynamics and Weight

Wheelbase :	103.94 inches / 264.0 cm

Length :	180.31 inches / 458.0 cm

Width :	71.65 inches / 182.0 cm

Height :	55.12 inches / 140.0 cm

Aerodynamic drag coefficient - Cx :	0.31

Curb Weight :	3891 lbs / 1765 kg

Weight/Power Output Ratio :	9.8 kg/hp


Volvo C70 II D5 Aut. Interior size, Dimensions

Num. of Seats :	4 seats

Trunk / Boot capacity :	14.3 cu-ft / 404 L


Volvo C70 II D5 Aut. Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (12.6 inches / 320 mm)

Rear Brakes - Disc dimensions :	Vented Discs (11.02 inches / 280 mm)

Front Tyres - Rims dimensions :	215/55 R16

Rear Tyres - Rims dimensions :	215/55 R16

Front Suspension :	Independent. MacPherson. Coil Springs. Anti-roll bar.

Rear Suspension :	Independent. Coil Springs. Anti-roll bar.
