Tourneo Courier 2024 Versions

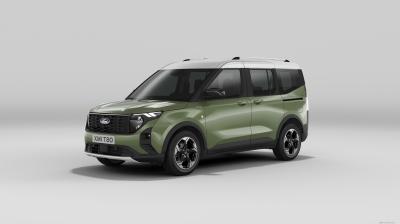

Ford Tourneo Courier 2024 1.0 EcoBoost Auto Specs

(2024 - ) - Technical Specifications for Years 2024, 2025

Petrol

60.9 cu-in
998 cm³

Inline 3

123 HP
125 PS / 92 kW

125 lb-ft
170 Nm

36 MPG
6.6 L/100 km
43 MPG UK

Ford Tourneo Courier 2024 1.0 EcoBoost Auto Body, Model and Production details

Generation :	Tourneo Courier 2 - 2024 New Model

Body :	Van

Num. of Doors :	5 doors


Ford Tourneo Courier 2024 1.0 EcoBoost Auto Engine Technical Data

Engine type - Number of cylinders :	Inline 3

Engine Code :	Ford Ecoboost B7NB

Fuel type :	Petrol

Fuel System :	Direct Injection

Lubrication :	See oil information Ford Tourneo Courier 2024 1.0 EcoBoost Auto Oil Specifications - Engine oil All Weather: 0W20 OEM: WSS-M2C954-A1 API/ACEA: ACEA C6 Engine oil capacity (with filter): 4.97 L

Engine Alignment :	Transverse

Engine Position :	Front

Engine displacement :	60.9 cu-in / 998 cm³

Bore x Stroke :	2.83 x 3.23 inches 71.9 x 82.0 mm

Number of valves :	12 Valves

Aspiration :	Turbo Intercooler

Compression Ratio :	10.5

Horsepower :	123 HP / 125 PS / 92 kW @ 6000 rpm

Maximum torque :	125 lb-ft / 170 Nm @ 1400-4500 rpm

Drive wheels - Traction - Drivetrain :	FWD

Transmission Gearbox - Number of speeds :	7 speed Automatic


Ford Tourneo Courier 2024 1.0 EcoBoost Auto Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - Low WLTP:	32 MPG 7.4 L/100 km 38 MPG UK

Fuel Consumption - Economy - Medium WLTP:	40 MPG 5.9 L/100 km 48 MPG UK

Fuel Consumption - Economy - High WLTP:	42 MPG 5.6 L/100 km 50 MPG UK

Fuel Consumption - Economy - Extra high WLTP:	31 MPG 7.5 L/100 km 38 MPG UK

Fuel Consumption - Economy - Combined WLTP:	36 MPG 6.6 L/100 km 43 MPG UK

Range (WLTP):	423 miles / 681 km

Fuel Tank Capacity :	11.9 gallons 45 L 9.9 UK gallons

CO2 emissions WLTP :	150 g/km (Ford)

Emission standard :	Euro 6e

Catalytic converter :	Particle Filter

Ford Tourneo Courier 2024 1.0 EcoBoost Auto Performance

Top Speed :	- Mph / - km/h

Acceleration 0 to 100 km/h (0 to 62 mph) :	- s


Ford Tourneo Courier 2024 1.0 EcoBoost Auto Size, Dimensions, Aerodynamics and Weight

Wheelbase :	105.98 inches / 269.2 cm

Length :	170.75 inches / 433.7 cm

Width :	70.87 inches / 180.0 cm

Width with mirrors :	81.73 inches / 207.6 cm

Height :	71.54 inches / 181.7 cm

Ground clearance :	6.69 inches / 17.0 cm

Cargo box inside length :	39.45 inches / 100.2 cm

Cargo box inside height :	47.87 inches / 121.6 cm

Cargo width :	48.62 inches / 123.5 cm

Max. width at wheelhouse :	46.14 inches / 117.2 cm

Rear door width :	48.62 inches / 123.5 cm

Rear door height :	43.58 inches / 110.7 cm

Side door width :	21.02 inches / 53.4 cm

Side door height :	42.09 inches / 106.9 cm

Max. Towing Capacity Weight :	2425 lbs / 1100 kg

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	3406 lbs / 1545 kg

Weight/Power Output Ratio :	12.4 kg/hp


Ford Tourneo Courier 2024 1.0 EcoBoost Auto Interior size, Dimensions

Num. of Seats :	5 seats

Trunk / Boot capacity :	20.1 cu-ft / 570 L

Trunk / Boot First Row :	76.4 cu-ft / 2162 L

Trunk / Boot Second Row :	42 cu-ft / 1188 L


Ford Tourneo Courier 2024 1.0 EcoBoost Auto Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (15 inches / 381 mm)

Rear Brakes - Disc dimensions :	Drums (10 inches / 254 mm)

Front Tyres - Rims dimensions :	195/65 R15

Rear Tyres - Rims dimensions :	195/65 R15

Turning circle :	35.1 feet / 10.7 m

Front Suspension :	Independent MacPherson Strut. Coil Springs. Anti-roll bar.

Rear Suspension :	Beam Axle. Coil Springs.
