Browse Car Specifications...

M Series Versions

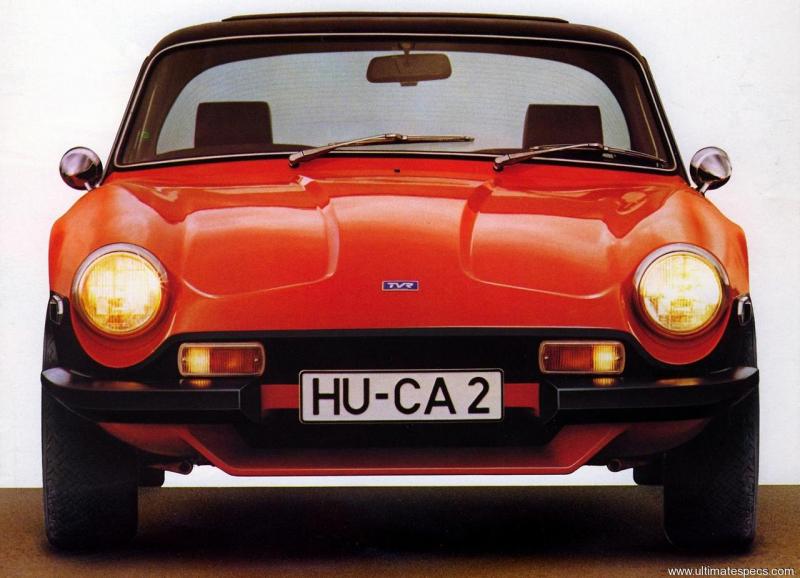

Tvr M Series 3000 M Specs

(1972 - 1977) - Technical Specifications for Years 1972, 1973, 1974, 1975, 1976, 1977

Petrol

182.7 cu-in
2994 cm³

V 6

138 HP
140 PS / 103 kW

191 lb-ft
260.0 Nm

124 Mph
200 km/h

Tvr M Series 3000 M Body, Model and Production details

Body :	Coupé

Num. of Doors :	3 doors


Tvr M Series 3000 M Engine Technical Data

Engine type - Number of cylinders :	V 6

Engine Code :	-

Fuel type :	Petrol

Fuel System :	1 Weber carb

Engine Alignment :	Longitudinal

Engine displacement :	182.7 cu-in / 2994 cm³

Bore x Stroke :	3.69 x 2.85 inches 93.66 x 72.42 mm

Number of valves :	12 Valves

Aspiration :	naturally-aspirated

Compression Ratio :	8.90

Horsepower :	138 HP / 140 PS / 103 kW @ 5000 rpm

Maximum torque :	191 lb-ft / 260.0 Nm @ 5000 rpm

Drive wheels - Traction - Drivetrain :	RWD

Transmission Gearbox - Number of speeds :	4 speed Manual Transmission Relations Final Drive Ratio: 3.45


Tvr M Series 3000 M Fuel Consumption (Economy), Emissions and Range

Fuel Tank Capacity :	14.3 gallons 54.6 L 11.9 UK gallons

Catalytic converter :	No


Tvr M Series 3000 M Size, Dimensions, Aerodynamics and Weight

Wheelbase :	90 inches / 228.6 cm

Length :	157.99 inches / 401.3 cm

Width :	64.02 inches / 162.6 cm

Height :	47.01 inches / 119.4 cm

Front Axle :	55.75 inches / 141.6 cm

Rear Axle :	55.75 inches / 141.6 cm

Ground clearance :	5 inches / 12.7 cm

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	2196 lbs / 996 kg

Weight/Power Output Ratio :	7.1 kg/hp


Tvr M Series 3000 M Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Discs (- inches / - mm)

Rear Brakes - Disc dimensions :	Drums (- inches / - mm)

Front Tyres - Rims dimensions :	-/- R-

Rear Tyres - Rims dimensions :	-/- R-

Steering :	Rack and pinion. -

Front Suspension :	Coil springs. Double wishbone. Anti-roll bar.

Rear Suspension :	Coil Springs. Double wishbone.
