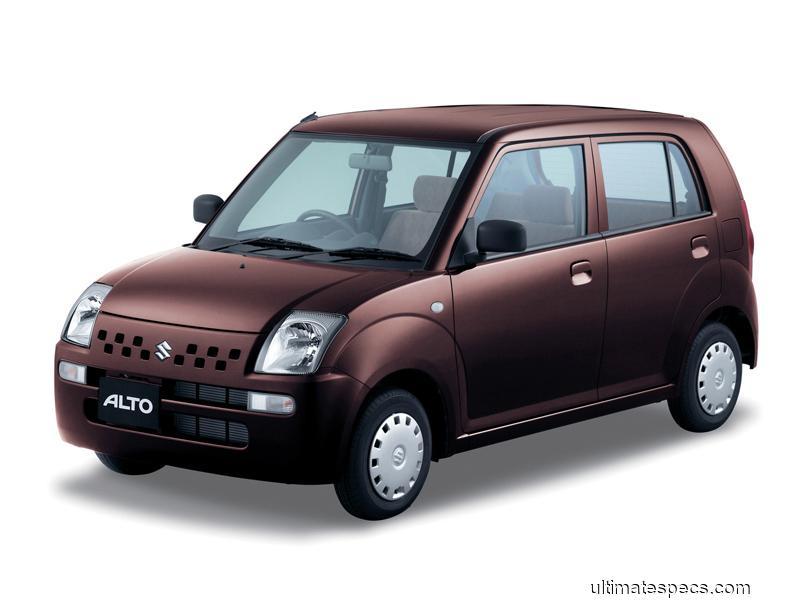

Suzuki Alto 6 Van JDM 0.7i 4WD Specs

(2005 - 2006) - Technical Specifications for Years 2005, 2006

Petrol

40.2 cu-in
658 cm³

Inline 3

53 HP
54 PS / 40 kW

44 lb-ft
61 Nm

Suzuki Alto 6 Van JDM 0.7i 4WD Body, Model and Production details

Generation :	Alto 6th Gen (HA24)

Body :	Hatchback

Num. of Doors :	5 doors


Suzuki Alto 6 Van JDM 0.7i 4WD Engine Technical Data

Engine type - Number of cylinders :	Inline 3

Engine Code :	K6A

Fuel type :	Petrol

Fuel System :	Multipoint Indirect Injection

Engine Alignment :	Transverse

Engine Position :	Front

Engine displacement :	40.2 cu-in / 658 cm³

Bore x Stroke :	2.68 x 2.38 inches 68.0 x 60.4 mm

Number of valves :	12 Valves

Aspiration :	naturally-aspirated

Compression Ratio :	10.5

Horsepower :	53 HP / 54 PS / 40 kW @ 6500 rpm

Maximum torque :	44 lb-ft / 61 Nm @ 4000 rpm

Drive wheels - Traction - Drivetrain :	AWD

Transmission Gearbox - Number of speeds :	5 speed Manual Transmission Relations 1st Gear Ratio: 2nd Gear Ratio: 3rd Gear Ratio: 4th Gear Ratio: 5th Gear Ratio: Reverse Gear Ratio: 3.58 Final Drive Ratio: 5.71


Suzuki Alto 6 Van JDM 0.7i 4WD Fuel Consumption (Economy), Emissions and Range

Fuel Tank Capacity :	7.9 gallons 30 L 6.6 UK gallons

Catalytic converter :	Yes, with Lamda-Sensor

Suzuki Alto 6 Van JDM 0.7i 4WD Performance

Top Speed :	- Mph / - km/h

Acceleration 0 to 100 km/h (0 to 62 mph) :	- s


Suzuki Alto 6 Van JDM 0.7i 4WD Size, Dimensions, Aerodynamics and Weight

Wheelbase :	92.91 inches / 236.0 cm

Length :	133.66 inches / 339.5 cm

Width :	58.07 inches / 147.5 cm

Height :	59.45 inches / 151.0 cm

Front Axle :	50.79 inches / 129.0 cm

Rear Axle :	50.79 inches / 129.0 cm

Ground clearance :	5.91 inches / 15.0 cm

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	1698 lbs / 770 kg

Weight/Power Output Ratio :	14.3 kg/hp


Suzuki Alto 6 Van JDM 0.7i 4WD Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Discs (- inches / - mm)

Rear Brakes - Disc dimensions :	Drums (- inches / - mm)

Front Tyres - Rims dimensions :	155/65 R13

Rear Tyres - Rims dimensions :	155/65 R13

Front Suspension :	Independent. MacPherson. Coil Springs. Anti-roll bar.

Rear Suspension :	De-Dion axle. Coil Springs.
