Ambassador 1971 Wagon Versions

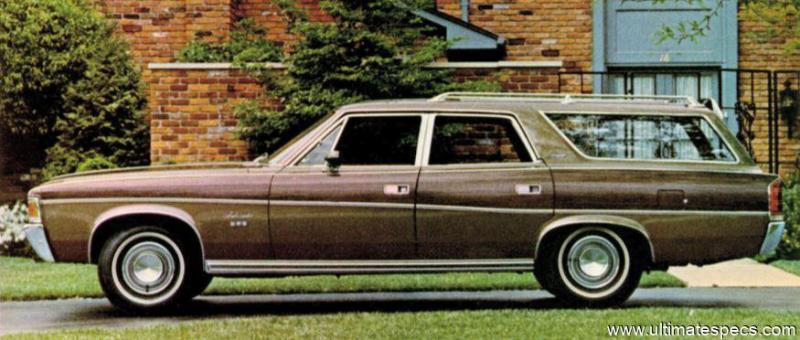

AMC Ambassador 1971 Wagon 360 V8 Auto Brougham Specs

(1971 - 1972) - Technical Specifications for Years 1971, 1972

Petrol

359.8 cu-in
5896 cm³

V 8

175 HP
177 PS / 130 kW

284 lb-ft
386 Nm

AMC Ambassador 1971 Wagon 360 V8 Auto Brougham Body, Model and Production details

Generation :	Ambassador 7th. Gen. - 1971 Update

Body :	Estate

Num. of Doors :	5 doors


AMC Ambassador 1971 Wagon 360 V8 Auto Brougham Engine Technical Data

Engine type - Number of cylinders :	V 8

Engine Code :	AMC V-8 360

Fuel type :	Petrol

Fuel System :	Carburetor

Engine Alignment :	Longitudinal

Engine Position :	Front

Engine displacement :	359.8 cu-in / 5896 cm³

Bore x Stroke :	4.08 x 3.44 inches 103.6 x 87.4 mm

Number of valves :	16 Valves

Aspiration :	naturally-aspirated

Compression Ratio :	8.5

Horsepower :	175 HP / 177 PS / 130 kW @ 4000 rpm

Maximum torque :	284 lb-ft / 386 Nm @ 2400 rpm

Drive wheels - Traction - Drivetrain :	RWD

Transmission Gearbox - Number of speeds :	3 speed Automatic Transmission Relations Final Drive Ratio: 2.87


AMC Ambassador 1971 Wagon 360 V8 Auto Brougham Fuel Consumption (Economy), Emissions and Range

Fuel Tank Capacity :	14 gallons 53.8 L 11.7 UK gallons

AMC Ambassador 1971 Wagon 360 V8 Auto Brougham Performance

Top Speed :	- Mph / - km/h

Acceleration 0 to 100 km/h (0 to 62 mph) :	- s


AMC Ambassador 1971 Wagon 360 V8 Auto Brougham Size, Dimensions, Aerodynamics and Weight

Wheelbase :	122.01 inches / 309.9 cm

Length :	209.69 inches / 532.6 cm

Width :	77.24 inches / 196.2 cm

Height :	56.69 inches / 144.0 cm

Front Axle :	60 inches / 152.4 cm

Rear Axle :	60 inches / 152.4 cm

Max. Towing Capacity Weight :	5000 lbs / 2268 kg

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	3960 lbs / 1796 kg

Weight/Power Output Ratio :	10.1 kg/hp


AMC Ambassador 1971 Wagon 360 V8 Auto Brougham Interior size, Dimensions

Num. of Seats :	5 seats

Trunk / Boot capacity :	-

Trunk / Boot First Row :	99.1 cu-ft / 2806 L


AMC Ambassador 1971 Wagon 360 V8 Auto Brougham Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (10 inches / 254 mm)

Rear Brakes - Disc dimensions :	Drums (- inches / - mm)

Front Tyres - Rims dimensions :	H78/- R14

Rear Tyres - Rims dimensions :	H78/- R14

Front Suspension :	Twin ball-joint design with Coil Springs. Sway-bar.

Rear Suspension :	4-link trailing-arm design with Coil Springs.
