Tractors Specs > Kubota > Kubota L3301 4WD

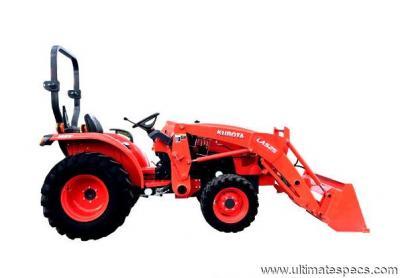

Kubota L3301 4WD Specs

(2014)

Kubota L3301 4WD General Information

Brand	Kubota

Model	Kubota L3301 4WD

Start year	2014

End year	-

Category / Type	Compact Utility tractor

Distributor	-

Manufacturer	Kubota

Factory	-

Serial Number Location	-

Number of total built	-

Original Price (in USD)	-

Kubota L3301 4WD Chassis, dimensions, weight and tires

Cabin Type	Two-post folding ROPS.

Wheelbase	63.3 in

Length	107.9 in

Fuel Capacity	11.1

Operating Weight	- lbs

Front Tyres - Rims dimensions	-

Rear Tyres - Rims dimensions	-

Steering type	power

Brakes type	mechanical wet disc

Kubota L3301 4WD Electrical System

Charging System	alternator

Charging Voltage	12 volts

Ground	negative

Charging Amperage	40 A

Number of batteries	1

Battery - voltage	12 volts

Battery - Amp / Hour	- Ah

Battery - Cold Cranking Amperage	580 A

Battery - Group	-

Engine Starter - voltage	12 v

Kubota L3301 4WD Engine and Transmission Technical Data

Number of cylinders	3-cylinder

Fuel Type	diesel

Engine Code	Kubota

Engine size - Displacement - Engine capacity	111.4 ci

Bore x Stroke	3.43x4.03

Compression Ratio	-

Maximum power - Output - Horsepower	- hp @ 2700 rpm

Engine Cooling Type	liquid-cooled

Engine Air Filter / Cleaner	-

Transmission Type	hydrostatic -

Transmission / Gearbox gears	infinite (3-range) forward and reverse

Transmission Clutch	dry disc

Drive wheels - Traction - Drivetrain	4x4 MFWD 4WD
