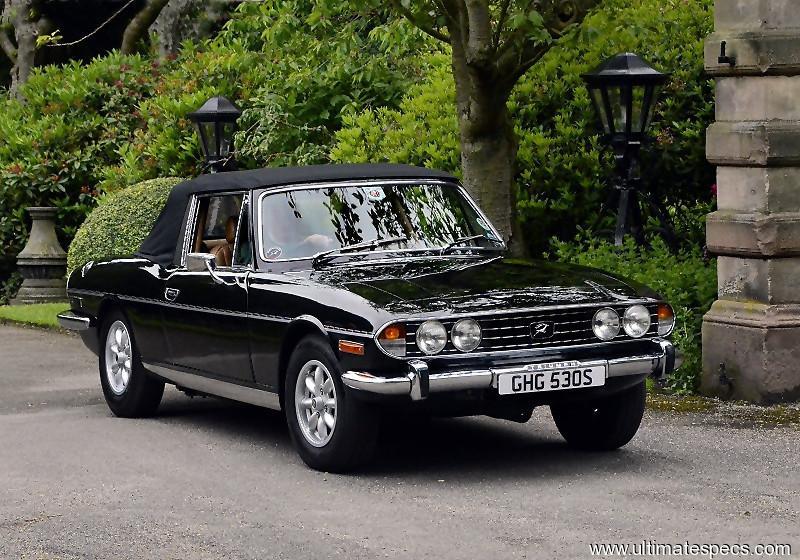

Triumph Stag Specs

(1977 - ) Technical Specifications

Petrol

182.9 cu-in
2997 cm³

V 8

143 HP
145 PS / 107 kW

166 lb-ft
226.0 Nm

120 Mph
193 km/h

Triumph Stag Body, Model and Production details

Body :	Cabrio

Num. of Doors :	2 doors


Triumph Stag Engine Technical Data

Engine type - Number of cylinders :	V 8

Engine Code :	-

Fuel type :	Petrol

Fuel System :	2 Stromberg 175 CDS carbs

Engine Alignment :	Longitudinal

Engine displacement :	182.9 cu-in / 2997 cm³

Bore x Stroke :	3.39 x 2.54 inches 86.00 x 64.50 mm

Number of valves :	16 Valves

Aspiration :	naturally-aspirated

Compression Ratio :	9.25

Horsepower :	143 HP / 145 PS / 107 kW @ 5700 rpm

Maximum torque :	166 lb-ft / 226.0 Nm @ 5700 rpm

Drive wheels - Traction - Drivetrain :	RWD

Transmission Gearbox - Number of speeds :	4 speed Manual Transmission Relations Final Drive Ratio: 3.70


Triumph Stag Fuel Consumption (Economy), Emissions and Range

Fuel Tank Capacity :	16.6 gallons 63 L 13.9 UK gallons

Catalytic converter :	No


Triumph Stag Size, Dimensions, Aerodynamics and Weight

Wheelbase :	100 inches / 254 cm

Length :	173.74 inches / 441.3 cm

Width :	63.5 inches / 161.3 cm

Height :	49.53 inches / 125.8 cm

Front Axle :	52.6 inches / 133.6 cm

Rear Axle :	52.99 inches / 134.6 cm

Ground clearance :	4.02 inches / 10.2 cm

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	2639 lbs / 1197 kg

Weight/Power Output Ratio :	8.3 kg/hp


Triumph Stag Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Discs (10.63 inches / 270 mm)

Rear Brakes - Disc dimensions :	Drums (- inches / - mm)

Front Tyres - Rims dimensions :	-/- R-

Rear Tyres - Rims dimensions :	-/- R-

Front Wheels Width :	5"

Rear Wheels Width :	5"

Steering :	Rack and pinion. PAS -

Steering wheel lock-to-lock :	3.000 turns

Front Suspension :	MacPherson struts. Coil springs.

Rear Suspension :	Coil Springs. Semi-trailing arm. Trailing arm.
