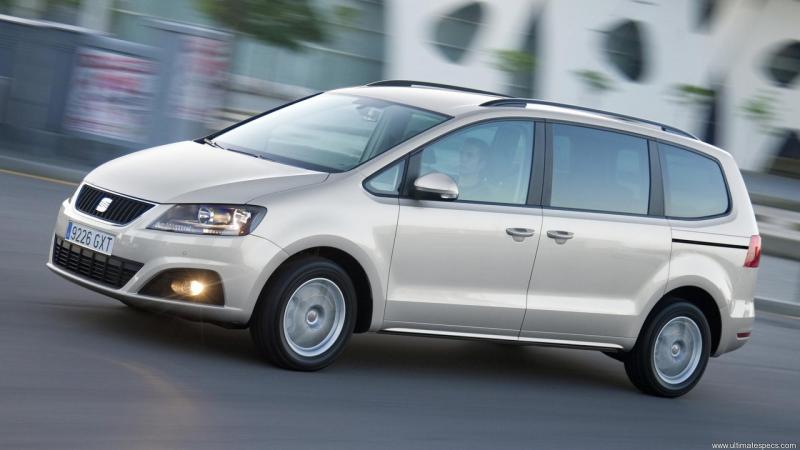

Seat Alhambra II 1.4 TSI 150HP Ecomotive Reference Specs

(2012 - 2015) - Technical Specifications for Years 2012, 2013, 2014, 2015

Petrol

84.8 cu-in
1390 cm³

Inline 4

148 HP
150 PS / 110 kW

177 lb-ft
240 Nm

122 Mph
197 km/h

Seat Alhambra II 1.4 TSI 150HP Ecomotive Reference Body, Model and Production details

Generation :	Alhambra 2

Body :	-

Num. of Doors :	5 doors


Seat Alhambra II 1.4 TSI 150HP Ecomotive Reference Engine Technical Data

Engine type - Number of cylinders :	Inline 4

Engine Code :	-

Fuel type :	Petrol

Fuel System :	Direct Injection.

Engine Alignment :	Transverse

Engine Position :	Front

Engine displacement :	84.8 cu-in / 1390 cm³

Bore x Stroke :	3.01 x 2.98 inches 76.5 x 75.6 mm

Number of valves :	16 Valves

Aspiration :	Turbo + Compressor + Intercooler

Compression Ratio :	10.0

Horsepower :	148 HP / 150 PS / 110 kW @ 5800 rpm

Maximum torque :	177 lb-ft / 240 Nm @ 1750-4000 rpm

Drive wheels - Traction - Drivetrain :	FWD

Transmission Gearbox - Number of speeds :	6 speed Manual Transmission Relations 1st Gear Ratio: 2nd Gear Ratio: 3rd Gear Ratio: 4th Gear Ratio: 5th Gear Ratio: 6th Gear Ratio: Reverse Gear Ratio: 8.0

Clutch Type :	Dry single disc clutch


Seat Alhambra II 1.4 TSI 150HP Ecomotive Reference Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - City NEDC :	26 MPG 9.2 L/100 km 31 MPG UK

Fuel Consumption - Economy - Open road NEDC :	39 MPG 6.1 L/100 km 46 MPG UK

Fuel Consumption - Economy - Combined NEDC :	33 MPG 7.2 L/100 km 39 MPG UK

Range :	604 miles / 972 km

Fuel Tank Capacity :	18.5 gallons 70 L 15.4 UK gallons

CO2 emissions :	167 g/km (Seat)

Emission standard :	Euro V

Seat Alhambra II 1.4 TSI 150HP Ecomotive Reference Performance

Top Speed :	122 Mph / 197 km/h

Acceleration 0 to 100 km/h (0 to 62 mph) :	10.7 s


Seat Alhambra II 1.4 TSI 150HP Ecomotive Reference Size, Dimensions, Aerodynamics and Weight

Wheelbase :	114.92 inches / 291.9 cm

Length :	191.1 inches / 485.4 cm

Width :	74.96 inches / 190.4 cm

Height :	67.72 inches / 172.0 cm

Front Axle :	61.77 inches / 156.9 cm

Rear Axle :	63.66 inches / 161.7 cm

Aerodynamic drag coefficient - Cx :	0.30

Curb Weight :	3799 lbs / 1723 kg

Weight/Power Output Ratio :	11.5 kg/hp


Seat Alhambra II 1.4 TSI 150HP Ecomotive Reference Interior size, Dimensions

Num. of Seats :	5 seats

Seat distribution :	2+3

Trunk / Boot capacity :	28.6 cu-ft / 809 L

Trunk / Boot First Row :	85.8 cu-ft / 2430 L


Seat Alhambra II 1.4 TSI 150HP Ecomotive Reference Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (12.28 inches / 312 mm)

Rear Brakes - Disc dimensions :	Discs (11.1 inches / 282 mm)

Front Tyres - Rims dimensions :	205/60 R16

Rear Tyres - Rims dimensions :	205/60 R16

Front Wheels Width :	6.5"

Rear Wheels Width :	6.5"

Steering :	Rack and pinion Electric

Front Suspension :	MacPherson struts. Coil springs.

Rear Suspension :	Coil Springs.
