Clio 4 Ph2 Versions

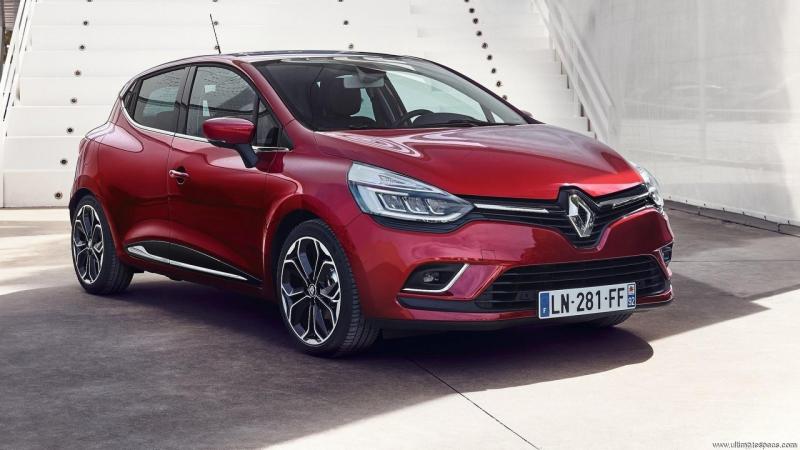

Renault Clio 4 Ph2 dCi 90 Specs

(2018 - 2019) - Technical Specifications for Years 2018, 2019

Diesel

89.2 cu-in
1461 cm³

Inline 4

89 HP
90 PS / 66 kW

162 lb-ft
220 Nm

112 Mph
181 km/h

Renault Clio 4 Ph2 dCi 90 Body, Model and Production details

Generation :	Clio 4

Body :	Hatchback

Num. of Doors :	5 doors


Renault Clio 4 Ph2 dCi 90 Engine Technical Data

Engine type - Number of cylinders :	Inline 4

Engine Code :	K9K E6

Fuel type :	Diesel

Fuel System :	Common Rail

Lubrication :	See oil information Renault Clio 4 Ph2 dCi 90 Oil Specifications - Engine oil All Weather: 5W30 OEM: Renault RN17, MB226.52 API/ACEA: ACEA C3 Engine oil capacity (with filter): 5.9 L

Engine Alignment :	Transverse

Engine Position :	Front

Engine displacement :	89.2 cu-in / 1461 cm³

Bore x Stroke :	2.99 x 3.17 inches 76 x 80.5 mm

Number of valves :	8 Valves

Aspiration :	Turbo Intercooler

Compression Ratio :	15.2

Horsepower :	89 HP / 90 PS / 66 kW @ 4000 rpm

Maximum torque :	162 lb-ft / 220 Nm @ 1750 rpm

Drive wheels - Traction - Drivetrain :	FWD

Transmission Gearbox - Number of speeds :	5 speed Manual


Renault Clio 4 Ph2 dCi 90 Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - City NEDC :	55 MPG 4.3 L/100 km 66 MPG UK

Fuel Consumption - Economy - Open road NEDC :	65 MPG 3.6 L/100 km 78 MPG UK

Fuel Consumption - Economy - Combined NEDC :	59 MPG 4 L/100 km 71 MPG UK

Range :	699 miles / 1125 km

Fuel Tank Capacity :	11.9 gallons 45 L 9.9 UK gallons

CO2 emissions :	104 g/km (Renault)

CO2 emissions WLTP :	127 g/km (Renault)

Emission standard :	Euro 6c (WLTP) 36AA-AD

Catalytic converter :	DPF

Renault Clio 4 Ph2 dCi 90 Performance

Top Speed :	112 Mph / 181 km/h

Acceleration 0 to 100 km/h (0 to 62 mph) :	11.8 s


Renault Clio 4 Ph2 dCi 90 Size, Dimensions, Aerodynamics and Weight

Wheelbase :	101.93 inches / 258.9 cm

Length :	159.96 inches / 406.3 cm

Width :	68.19 inches / 173.2 cm

Width with mirrors :	76.57 inches / 194.5 cm

Height :	57.01 inches / 144.8 cm

Front Axle :	59.29 inches / 150.6 cm

Rear Axle :	59.29 inches / 150.6 cm

Ground clearance :	4.72 inches / 12.0 cm

Max. Towing Capacity Weight :	2646 lbs / 1200 kg

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	2568 lbs / 1165 kg

Weight/Power Output Ratio :	12.9 kg/hp


Renault Clio 4 Ph2 dCi 90 Interior size, Dimensions

Num. of Seats :	5 seats

Trunk / Boot capacity :	10.6 cu-ft / 300 L

Trunk / Boot First Row :	40.5 cu-ft / 1146 L


Renault Clio 4 Ph2 dCi 90 Brakes, Tires, Steering and Suspension

Rear Brakes - Disc dimensions :	Drums (- inches / - mm)

Front Tyres - Rims dimensions :	205/45 R17

Rear Tyres - Rims dimensions :	205/45 R17

Turning circle :	34.8 feet / 10.6 m

Front Suspension :	MacPherson struts. Coil springs.

Rear Suspension :	Coil Springs. Torsion bar.
