Master 3 Phase 3 Versions

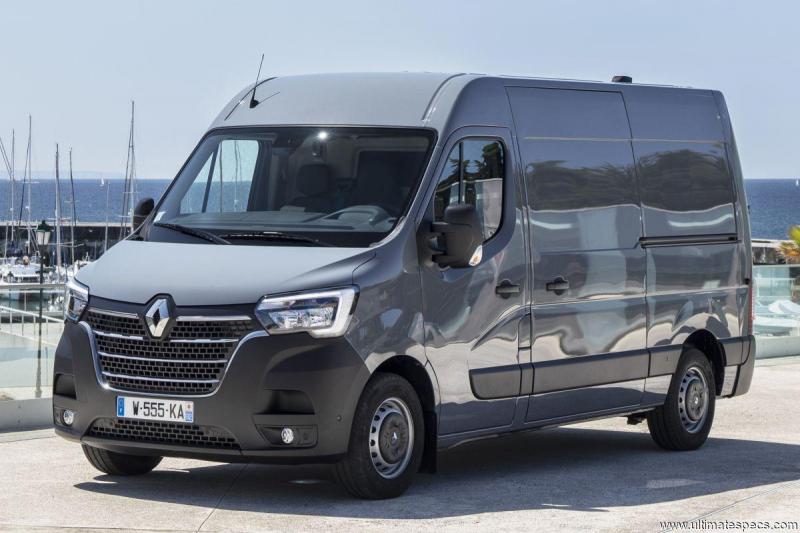

Renault Master 3 Phase 3 L3H2 FWD dCi 150 Auto Specs

(2019 - ) Technical Specifications

Diesel

140.2 cu-in
2298 cm³

Inline 4

148 HP
150 PS / 110 kW

283 lb-ft
385 Nm

32 MPG
7.3 L/100 km
39 MPG UK

Renault Master 3 Phase 3 L3H2 FWD dCi 150 Auto Body, Model and Production details

Generation :	Master III

Body :	Van

Num. of Doors :	4 doors


Renault Master 3 Phase 3 L3H2 FWD dCi 150 Auto Engine Technical Data

Engine type - Number of cylinders :	Inline 4

Engine Code :	-

Fuel type :	Diesel

Fuel System :	Common Rail

Engine Alignment :	Transverse

Engine Position :	Front

Engine displacement :	140.2 cu-in / 2298 cm³

Number of valves :	16 Valves

Aspiration :	Turbo Intercooler

Horsepower :	148 HP / 150 PS / 110 kW @ 3500 rpm

Maximum torque :	283 lb-ft / 385 Nm @ 1500 rpm

Drive wheels - Traction - Drivetrain :	FWD

Transmission Gearbox - Number of speeds :	6 speed Automatic


Renault Master 3 Phase 3 L3H2 FWD dCi 150 Auto Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - Combined:	32 MPG 7.3 L/100 km 39 MPG UK

Fuel Consumption - Economy - Combined NEDC :	32 MPG 7.3 L/100 km 39 MPG UK

Range :	681 miles / 1095 km

Fuel Tank Capacity :	21.1 gallons 80 L 17.6 UK gallons

CO2 emissions :	191 g/km (Renault)

CO2 emissions WLTP :	- g/km (Renault)

Catalytic converter :	Particle Filter

Renault Master 3 Phase 3 L3H2 FWD dCi 150 Auto Performance

Top Speed :	- Mph / - km/h

Acceleration 0 to 100 km/h (0 to 62 mph) :	- s


Renault Master 3 Phase 3 L3H2 FWD dCi 150 Auto Size, Dimensions, Aerodynamics and Weight

Wheelbase :	170.55 inches / 433.2 cm

Length :	245.08 inches / 622.5 cm

Width :	81.5 inches / 207.0 cm

Height :	97.95 inches / 248.8 cm

Front Axle :	68.9 inches / 175.0 cm

Rear Axle :	68.11 inches / 173.0 cm

Ground clearance :	6.77 inches / 17.2 cm

Max. Towing Capacity Weight :	5512 lbs / 2500 kg

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	4835 lbs / 2193 kg

Dry Weight :	4555 lbs / 2066 kg

Weight/Power Output Ratio :	14.6 kg/hp


Renault Master 3 Phase 3 L3H2 FWD dCi 150 Auto Interior size, Dimensions

Num. of Seats :	3 seats

Trunk / Boot capacity :	459.1 cu-ft / 13000 L


Renault Master 3 Phase 3 L3H2 FWD dCi 150 Auto Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (11.89 inches / 302 mm)

Rear Brakes - Disc dimensions :	Discs (12.01 inches / 305 mm)

Front Tyres - Rims dimensions :	225/65 R16

Rear Tyres - Rims dimensions :	225/65 R16

Turning circle :	51.5 feet / 15.7 m

Front Suspension :	Independent. MacPherson. Coil Springs. Anti-roll bar.

Rear Suspension :	Beam axle. Leaf springs.
