750S Versions

- 4.0 V8 SSG (2023)

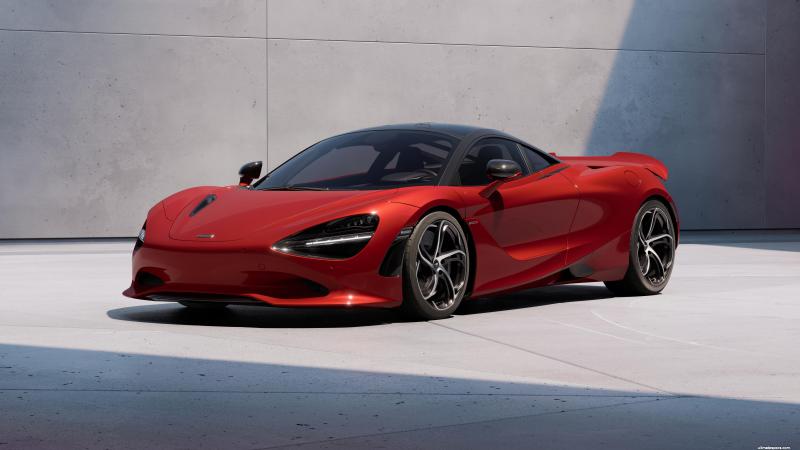

McLaren 750S 4.0 V8 SSG Specs

(2023 - ) - Technical Specifications for Years 2023, 2024

Petrol

3994 cm³
243.7 cu-in

V 8

750 PS
740 HP / 552 kW

800 Nm
590 lb-ft

332 km/h
206 Mph

12.2 L/100 km
23 MPG UK
19 MPG US

McLaren 750S 4.0 V8 SSG Body, Model and Production details

Generation :	750S

Body :	Coupé

Num. of Doors :	2 doors


McLaren 750S 4.0 V8 SSG Engine Technical Data

Engine type - Number of cylinders :	V 8

Engine Code :	M840T

Fuel type :	Petrol

Fuel System :	Direct Injection

Engine Alignment :	Longitudinal

Engine Position :	Mid-engine

Engine displacement :	3994 cm³ / 243.7 cu-in

Bore x Stroke :	93.0 x 73.5 mm 3.66 x 2.89 inches

Number of valves :	32 Valves

Aspiration :	Bi-Turbo

Horsepower :	750 PS / 740 HP / 552 kW @ 7500 rpm

Maximum torque :	800 Nm / 590 lb-ft @ 5500 rpm

Drive wheels - Traction - Drivetrain :	RWD

Transmission Gearbox - Number of speeds :	7 speed Dualclutch Automatic


McLaren 750S 4.0 V8 SSG Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - Low WLTP:	23.3 L/100 km 12 MPG UK 10 MPG US

Fuel Consumption - Economy - Medium WLTP:	12.9 L/100 km 22 MPG UK 18 MPG US

Fuel Consumption - Economy - High WLTP:	9.2 L/100 km 31 MPG UK 26 MPG US

Fuel Consumption - Economy - Extra high WLTP:	10.2 L/100 km 28 MPG UK 23 MPG US

Fuel Consumption - Economy - Combined WLTP:	12.2 L/100 km 23 MPG UK 19 MPG US

Range (WLTP):	590 km / 367 miles

Fuel Tank Capacity :	72 L 19 US gallons 15.8 UK gallons

CO2 emissions WLTP :	276 g/km (McLaren)

Emission standard :	Euro 6

Catalytic converter :	Y


McLaren 750S 4.0 V8 SSG Size, Dimensions, Aerodynamics and Weight

Wheelbase :	267.0 cm / 105.12 inches

Length :	456.9 cm / 179.88 inches

Width :	193.0 cm / 75.98 inches

Width with mirrors :	216.1 cm / 85.08 inches

Height :	119.6 cm / 47.09 inches

Front Axle :	168.0 cm / 66.14 inches

Rear Axle :	162.9 cm / 64.13 inches

Ground clearance :	10.7 cm / 4.21 inches

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	1389 kg / 3062 lbs

Weight/Power Output Ratio :	1.9 kg/hp


McLaren 750S 4.0 V8 SSG Interior size, Dimensions

Num. of Seats :	2 seats

Trunk / Boot capacity :	210 L / 7.4 cu-ft


McLaren 750S 4.0 V8 SSG Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (390 mm / 15.35 inches)

Rear Brakes - Disc dimensions :	Vented Discs (380 mm / 14.96 inches)

Front Tyres - Rims dimensions :	245/35 R19

Rear Tyres - Rims dimensions :	305/30 R20

Front Wheels Width :	9.0"

Rear Wheels Width :	11.0"

Turning circle :	12.1 m / 39.7 feet

Front Suspension :	Double wishbone. Coil Springs.

Rear Suspension :	Double wishbone. Coil Springs.
