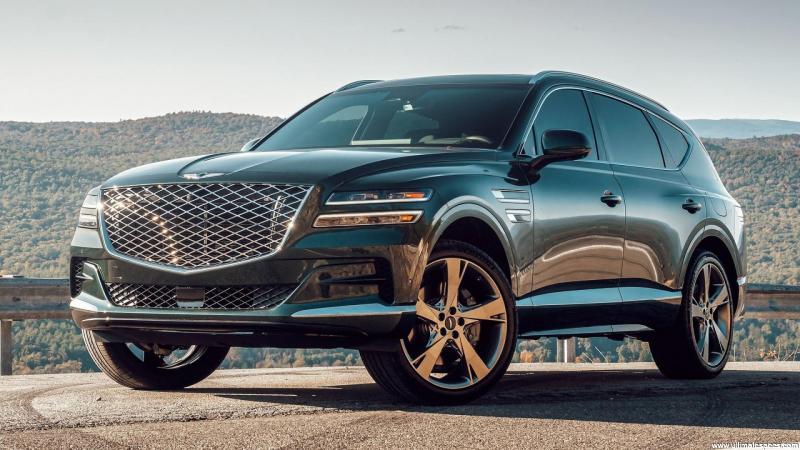

Genesis GV80 2.5T RWD Specs

(2020 - ) Technical Specifications

Petrol

152.4 cu-in
2497 cm³

Inline 4

300 HP
304 PS / 224 kW

311 lb-ft
422 Nm

Genesis GV80 2.5T RWD Body, Model and Production details

Body :	SUV / TT

Num. of Doors :	5 doors


Genesis GV80 2.5T RWD Engine Technical Data

Engine type - Number of cylinders :	Inline 4

Engine Code :	Hyundai Smartstream G 2.5

Fuel type :	Petrol

Fuel System :	Direct Injection

Engine Alignment :	Longitudinal

Engine Position :	Front

Engine displacement :	152.4 cu-in / 2497 cm³

Bore x Stroke :	3.48 x 4 inches 88.5 x 101.5 mm

Number of valves :	16 Valves

Aspiration :	Turbo

Compression Ratio :	10.5

Horsepower :	300 HP / 304 PS / 224 kW @ 5800 rpm

Maximum torque :	311 lb-ft / 422 Nm @ 1650 - 4000 rpm

Drive wheels - Traction - Drivetrain :	RWD

Transmission Gearbox - Number of speeds :	8 speed Automatic


Genesis GV80 2.5T RWD Fuel Consumption (Economy), Emissions and Range

Fuel Tank Capacity :	21.1 gallons 80 L 17.6 UK gallons

Catalytic converter :	Yes, with Lamda-Sensor


Genesis GV80 2.5T RWD Size, Dimensions, Aerodynamics and Weight

Wheelbase :	116.3 inches / 295.4 cm

Length :	194.69 inches / 494.5 cm

Width :	77.8 inches / 197.6 cm

Height :	67.52 inches / 171.5 cm

Front Axle :	65.91 inches / 167.4 cm

Rear Axle :	66.5 inches / 168.9 cm

Ground clearance :	8.07 inches / 20.5 cm

Max. Towing Capacity Weight :	6001 lbs / 2722 kg

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	4506 lbs / 2044 kg

Weight/Power Output Ratio :	6.7 kg/hp


Genesis GV80 2.5T RWD Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (- inches / - mm)

Rear Brakes - Disc dimensions :	Vented Discs (- inches / - mm)

Front Tyres - Rims dimensions :	265/55 R19

Rear Tyres - Rims dimensions :	265/55 R19

Front Suspension :	Multi-link

Rear Suspension :	Multi-link
