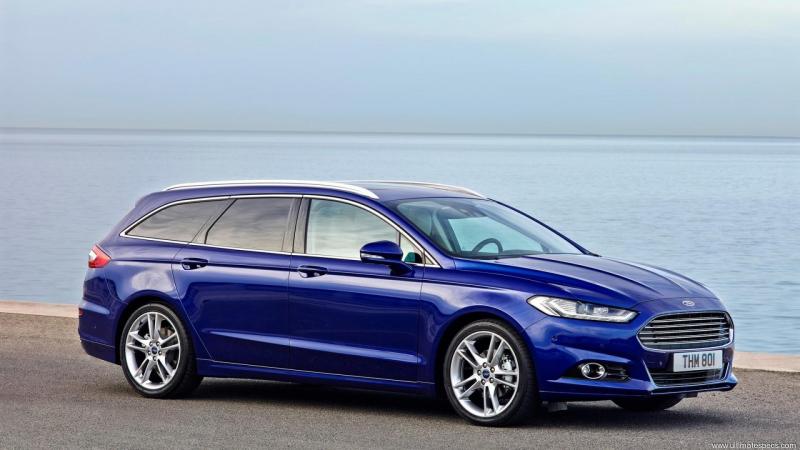

Ford Mondeo 5 Estate 2.0 TDCi 150HP Titanium Body, Model and Production details
|
|
| Generation : | Mondeo 5 |
| Body : | Estate |
| Num. of Doors : | 5 doors |
Ford Mondeo 5 Estate 2.0 TDCi 150HP Titanium Engine Technical Data
|
|
| Engine type - Number of cylinders : | Inline 4 |
| Engine Code : | - |
| Fuel type : | Diesel |
| Fuel System : | Direct Injection. |
| Engine Alignment : | Transverse |
| Engine Position : | Front |
| Engine displacement : | 121.9 cu-in / 1997 cm3 |
| Bore x Stroke : |
3.35 x 3.46 inches 85.0 x 88.0 mm |
| Number of valves : | 16 Valves |
| Aspiration : | Turbo (TGV) + Intercooler |
| Compression Ratio : | 16.7 |
| Horsepower : |
148 HP / 150 PS / 110 kW @ 3500 rpm |
| Maximum torque : |
258 lb-ft / 350 Nm @ 2000-2500 rpm |
| Drive wheels - Traction - Drivetrain : | FWD |
| Transmission Gearbox - Number of speeds : |
6 speed Manual
Transmission Relations
1st Gear Ratio: 2nd Gear Ratio: 3rd Gear Ratio: 4th Gear Ratio: 5th Gear Ratio: 6th Gear Ratio: |
Ford Mondeo 5 Estate 2.0 TDCi 150HP Titanium Fuel Consumption (Economy), Emissions and Range
|
|
| Fuel Consumption - Economy - City NEDC : |
46 MPG 5.1 L/100 km 55 MPG UK |
| Fuel Consumption - Economy - Open road NEDC : |
57 MPG 4.1 L/100 km 69 MPG UK |
| Fuel Consumption - Economy - Combined NEDC : |
52 MPG 4.5 L/100 km 63 MPG UK |
| Range : | 870 miles / 1400 km |
| Fuel Tank Capacity : |
16.6 gallons 63 L 13.9 UK gallons |
| CO2 emissions : | 117 g/km (Ford) |
| Emission standard : | Euro VI |
Ford Mondeo 5 Estate 2.0 TDCi 150HP Titanium Safety Ratings |
|
| Euro NCAP |
Ford Mondeo 5 Estate 2.0 TDCi 150HP Titanium
Euro NCAP Safety Rating
Adult: Pedestrian: Child: Safety Assist: 86 % 66 % 82 % 66 %
Tested on: 12 / 2014
|
Ford Mondeo 5 Estate 2.0 TDCi 150HP Titanium Performance
|
|
| Top Speed : | 131 Mph / 210 km/h |
| Acceleration 0 to 100 km/h (0 to 62 mph) : | 9.4 s |
Ford Mondeo 5 Estate 2.0 TDCi 150HP Titanium Size, Dimensions, Aerodynamics and Weight
|
|
| Wheelbase : | 112.2 inches / 285.0 cm |
| Length : | 191.61 inches / 486.7 cm |
| Width : | 72.91 inches / 185.2 cm |
| Height : | 59.09 inches / 150.1 cm |
| Aerodynamic drag coefficient - Cx : | - |
| Curb Weight : | 3521 lbs / 1597 kg |
| Weight/Power Output Ratio : | 10.6 kg/hp |
Ford Mondeo 5 Estate 2.0 TDCi 150HP Titanium Interior size, Dimensions
|
|
| Num. of Seats : | 5 seats |
| Seat distribution : | 2+3 |
| Trunk / Boot capacity : | 18.5 cu-ft / 525 L |
| Trunk / Boot First Row : | 57.6 cu-ft / 1630 L |
Ford Mondeo 5 Estate 2.0 TDCi 150HP Titanium Brakes, Tires, Steering and Suspension
|
|||
| Front Brakes - Disc dimensions : |
Vented Discs (11.81 inches / 300 mm) |
||
| Rear Brakes - Disc dimensions : |
Discs (11.89 inches / 302 mm) |
||
| Front Tyres - Rims dimensions : | 235/50 R17 | ||
| Rear Tyres - Rims dimensions : | 235/50 R17 | ||
| Front Wheels Width : | 7.5" | ||
| Rear Wheels Width : | 7.5" | ||
| Steering : | Rack and pinion Electric | ||
| Front Suspension : | MacPherson struts. Coil springs. | ||
| Rear Suspension : | Coil Springs. | ||
