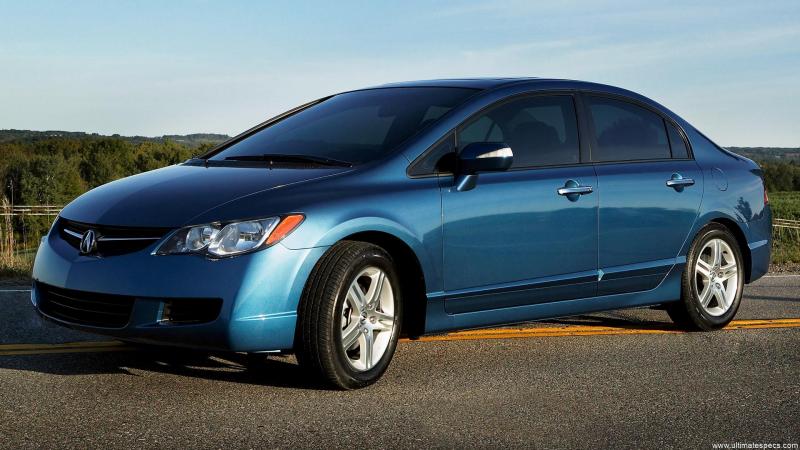

Acura CSX 2.0i Specs

(2005 - 2006) - Technical Specifications for Years 2005, 2006

Petrol

121.9 cu-in
1998 cm³

Inline 4

155 HP
157 PS / 115 kW

138 lb-ft
188 Nm

Acura CSX 2.0i Body, Model and Production details

Body :	Sedan

Num. of Doors :	4 doors


Acura CSX 2.0i Engine Technical Data

Engine type - Number of cylinders :	Inline 4

Engine Code :	Honda K20Z2

Fuel type :	Petrol

Fuel System :	Honda PGM-Fi fuel injection

Engine Alignment :	Transverse

Engine Position :	Front

Engine displacement :	121.9 cu-in / 1998 cm³

Bore x Stroke :	3.39 x 3.39 inches 86.00 x 86.00 mm

Number of valves :	16 Valves

Aspiration :	naturally-aspirated

Compression Ratio :	9.80

Horsepower :	155 HP / 157 PS / 115 kW @ 6000 rpm

Maximum torque :	138 lb-ft / 188 Nm @ 4500 rpm

Drive wheels - Traction - Drivetrain :	FWD

Transmission Gearbox - Number of speeds :	5 speed Manual


Acura CSX 2.0i Fuel Consumption (Economy), Emissions and Range

Fuel Tank Capacity :	13.2 gallons 50 L 11 UK gallons

Catalytic converter :	Yes, with Lamda-Sensor


Acura CSX 2.0i Size, Dimensions, Aerodynamics and Weight

Wheelbase :	106.3 inches / 270.0 cm

Length :	178.9 inches / 454.4 cm

Width :	68.98 inches / 175.2 cm

Height :	56.5 inches / 143.5 cm

Front Axle :	59.02 inches / 149.9 cm

Rear Axle :	60.16 inches / 152.8 cm

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	2895 lbs / 1313 kg

Weight/Power Output Ratio :	8.4 kg/hp


Acura CSX 2.0i Interior size, Dimensions

Trunk / Boot capacity :	12 cu-ft / 341 L


Acura CSX 2.0i Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (- inches / - mm)

Rear Brakes - Disc dimensions :	Discs (- inches / - mm)

Front Tyres - Rims dimensions :	205/55 R16

Rear Tyres - Rims dimensions :	205/55 R16

Front Suspension :	Control-link MacPherson strut front suspension. Anti-roll bar (24.2 mm)

Rear Suspension :	Reactive-link Double wishbone rear suspension. Anti-roll bar (11 mm)
