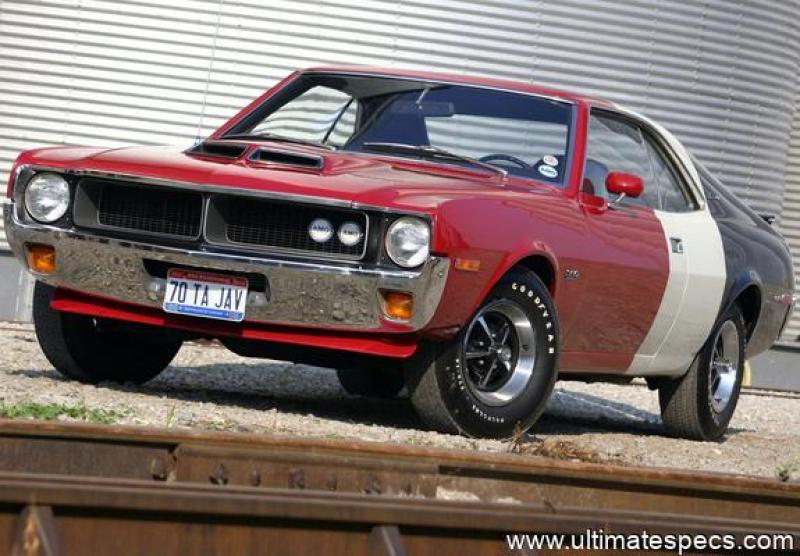

AMC Javelin 1970 390 V8 4-speed Specs

(1969 - 1970) - Technical Specifications for Years 1969, 1970

Petrol

389.6 cu-in
6384 cm³

V 8

326 HP
330 PS / 243 kW

420 lb-ft
570 Nm

AMC Javelin 1970 390 V8 4-speed Body, Model and Production details

Generation :	Javelin 1st Gen. - 1970 Update

Body :	Coupe

Num. of Doors :	2 doors


AMC Javelin 1970 390 V8 4-speed Engine Technical Data

Engine type - Number of cylinders :	V 8

Engine Code :	AMC V-8 390

Fuel type :	Petrol

Fuel System :	Carburetor

Engine Alignment :	Longitudinal

Engine Position :	Front

Engine displacement :	389.6 cu-in / 6384 cm³

Bore x Stroke :	4.17 x 3.57 inches 105.8 x 90.8 mm

Number of valves :	16 Valves

Aspiration :	naturally-aspirated

Compression Ratio :	10.2

Horsepower :	326 HP / 330 PS / 243 kW @ 5000 rpm

Maximum torque :	420 lb-ft / 570 Nm @ 3200 rpm

Drive wheels - Traction - Drivetrain :	RWD

Transmission Gearbox - Number of speeds :	4 speed Manual


AMC Javelin 1970 390 V8 4-speed Fuel Consumption (Economy), Emissions and Range

Fuel Tank Capacity :	15.9 gallons 60 L 13.2 UK gallons

AMC Javelin 1970 390 V8 4-speed Performance

Top Speed :	- Mph / - km/h

Acceleration 0 to 100 km/h (0 to 62 mph) :	- s


AMC Javelin 1970 390 V8 4-speed Size, Dimensions, Aerodynamics and Weight

Wheelbase :	109.02 inches / 276.9 cm

Length :	191.02 inches / 485.2 cm

Width :	71.89 inches / 182.6 cm

Height :	51.57 inches / 131.0 cm

Front Axle :	59.69 inches / 151.6 cm

Rear Axle :	57.01 inches / 144.8 cm

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	3294 lbs / 1494 kg

Weight/Power Output Ratio :	4.5 kg/hp


AMC Javelin 1970 390 V8 4-speed Interior size, Dimensions

Num. of Seats :	4 seats

Seat distribution :	2+2

Trunk / Boot capacity :	10.2 cu-ft / 289 L


AMC Javelin 1970 390 V8 4-speed Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Drums (10 inches / 254 mm)

Rear Brakes - Disc dimensions :	Drums (10 inches / 254 mm)

Front Tyres - Rims dimensions :	E70/- R14

Rear Tyres - Rims dimensions :	E70/- R14

Front Suspension :	Twin-Ball-Joint Design with Coil Springs. Sway Bar (optional on 6-cylinder)

Rear Suspension :	Semi-Elliptical Leaf Springs
